The Autodesk AutoCAD Electrical 2022 download Fundamentals with NFPA Standards guide addresses the essential foundational subjects for effectively utilizing the AutoCAD® Electrical software.

Within this guide on, you will become proficient in utilizing the powerful electrical drawing creation tools offered by the Autodesk AutoCAD Electrical 2022 download.

You will be guided through the process of generating schematic drawings involving ladder logic and point-to-point configurations.

As well as creating panel drawings and PLC-I/O circuits using automated commands for functions like symbol insertion, component tagging, wire numbering, and drawing modification.

Moreover, the guide introduces you to the techniques of customizing Autodesk AutoCAD Electrical 2022 download symbols, circuits, and databases to align with specific requirements.

Additionally, it covers other important topics including linking title blocks, utilizing reporting tools, working with templates, and effectively managing project files.

Autodesk AutoCAD Electrical 2022 overview

Autodesk AutoCAD Electrical 2022 download

Autodesk AutoCAD Electrical 2022 download offers an intuitive platform that empowers users with specialized tools for creating electrical drawings digitally.

It streamlines the process of designing various types of electrical circuits with unparalleled precision and optimal efficiency.

The software provides an extensive library of electrical components, enabling users to draft plans and construct comprehensive circuits seamlessly.

One notable feature of Autodesk AutoCAD Electrical 2022 download is its ability to visualize the circuit design in a 3D format.

This visualization aids in accurately perceiving the circuit layout, a crucial aspect for eventual physical implementation.

The software also possesses diagnostic capabilities, facilitating the identification and resolution of circuit issues to ensure seamless functionality.

Users can enhance their designs with descriptions and annotations, furnishing essential details and contextual information.

An additional standout function of the application is its automatic wire and component numbering feature.

This feature significantly minimizes errors within the design by systematically numbering all wires and components throughout the circuit.

This meticulous approach contributes to the overall accuracy and reliability of the design.

You can also get – Autodesk AutoCAD 2020 lt Download

Autodesk AutoCAD Electrical 2022 features

Autodesk AutoCAD Electrical 2022 features

Autodesk AutoCAD Electrical 2022 download represents a robust software solution designed to cater to the needs of electrical design experts.

Boasting an array of dedicated functionalities, it serves to simplify the workflow associated with crafting, documenting, and overseeing electrical control systems and schematics.

The following are noteworthy features within Autodesk AutoCAD Electrical 2022 download:

  • electrical symbols:

Symbols can be transformed or customized swiftly using the Symbol Builder feature.

Symbols crafted or adapted through the Symbol Builder maintain full compatibility with the AutoCAD Electrical toolset.

These symbols automatically break wires upon insertion and seamlessly integrate into bill of material reports, as well as various component and wire connection reports.

Flexibility is granted as you can exit and re-enter the Symbol Builder command at your convenience.

Exiting the command temporarily allows you to utilize regular AutoCAD commands for editing or finalizing the symbol in progress.

The AutoCAD Wblock command can be employed to save it to disk. When re-engaging the Symbol Builder tool, the Select Symbol/Objects dialog box enables you to choose objects.

This facilitates tracking of standard attributes and wire connection points that have been incorporated.

For newly crafted symbols, the Autodesk AutoCAD Electrical 2022 download toolset’s Insert Component or Insert Panel Component commands are employed for insertion.

You have the option to include your new symbol in the icon menu and select it through the “Type it” or “Browse” options located in the lower left corner of the icon menu.

  • Automation of wires and component tags:

Experience increased efficiency through advanced automation, enabling the automatic assignment of wire numbers and the creation of component tags.

This feature allows you to define the methodology for generating new component tags.

A component tag is composed of at least two elements: a family code and an alphanumeric reference number (for instance, “CR” and “100” could yield a tag like CR100 or 100CR).

Optionally, the component tag can incorporate a sheet number or user-specified separators.

You can also get – AutoCAD Electrical 2020 Free Download

If your preferred format involves parameters such as the sheet number %S or the drawing number %D, you can input the corresponding values within the edit boxes found in the Drawing Properties Drawing Settings dialog box.

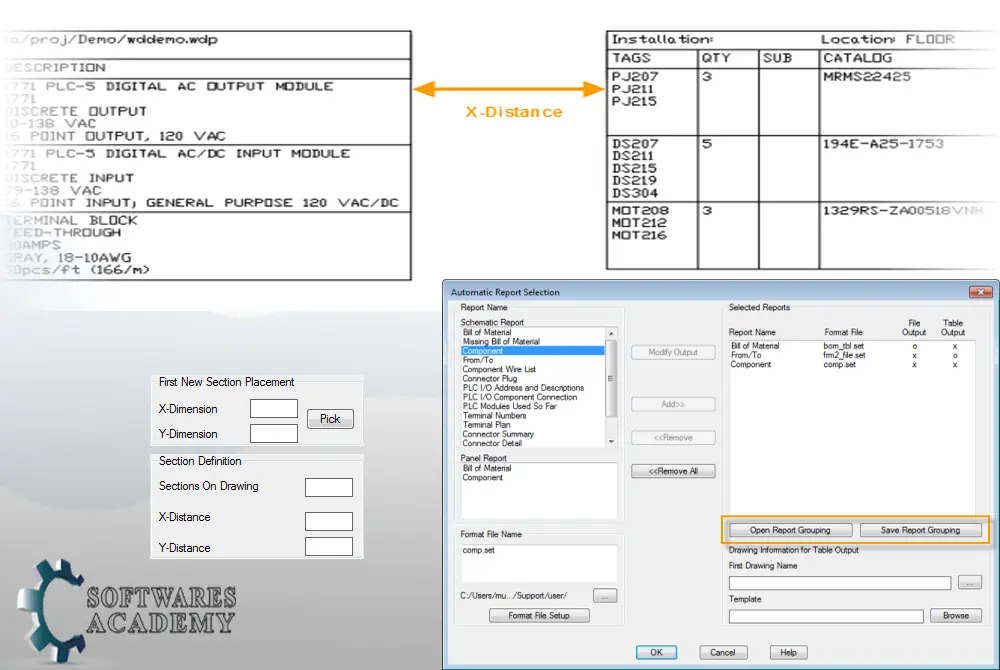

  • Automatic reports:

Simplify your work process and enhance efficiency by automating the generation and continuous updating of numerous customized reports.

The Report Generator dialog box eliminates the need for individual user input for each report, streamlining the experience once the process is initiated.

To enable Automatic Reports, format files are essential.

These files must specify either file output, table output, or both, given that the reports themselves are not presented on the screen.

The Format File Setup function is employed to define file and table output within a format file.

For recurring scenarios where the same set of reports is frequently executed, the option to create a report grouping proves beneficial.

When setting up a report grouping, incorporate all pertinent format files as if preparing for report execution, then save the configured group.

Information regarding these format files is stored within a Report Grouping file, denoted by the .rgf extension.

Subsequently, when you intend to rerun this specific report group, you can simply access the previously saved .rgf file.

  • Support for electrical standards:

Aside from its up-to-date support for the latest electrical standards, the Electrical toolset also ensures compatibility with the past by offering JIC and older IEC symbol libraries for legacy purposes.

The Autodesk AutoCAD Electrical 2022 download toolset boasts an array of library symbols that conform to the following standards:

– IEEE 315/315A

– IEC-60617


Symbols in the IEEE and IEC libraries are metric by default. To adjust them for imperial measurements, the Modify Library Symbols utility can be employed. As for the NFPA library symbols, they are measured in inches.

It’s worth noting that the JIC standard is no longer being updated and has been integrated into the NFPA 79 standards.

According to the NFPA standard, the library symbols align with the IEEE 315/315A standard.

Despite this, Autodesk AutoCAD Electrical 2022 download toolset remains committed to supplying the JIC and older IEC symbol libraries to accommodate legacy requirements.
